VMFM Variable Magnetic Field Module

Magnetic Lateral Field Module

Variable Magnetic Field Module

Variable Magnetic Field Module (VMFM) is the most advanced mode for magnetic characterization in Atomic Force Microscopy. It combines Magnetic Force Microscopy (MFM) mode with an external in-plane magnetic generator so that dynamic characterization like displacement of domain walls or rotation of magnetization reversal can be mapped. The external magnetic field generator is based on two unbalanced magnetic rods that are rotated with an stepper motor, so that there is no induced heating by current flowing as in magnetic coild field setup.

Applications

 Data storage  Material science  Semiconductor

Interests

Magnetic field on sample

 MFM measurement under magnetic field
 In-situ magnetic field control
 In-plane magnetic field range: 0-3000Gauss.
 No heating of the sample.

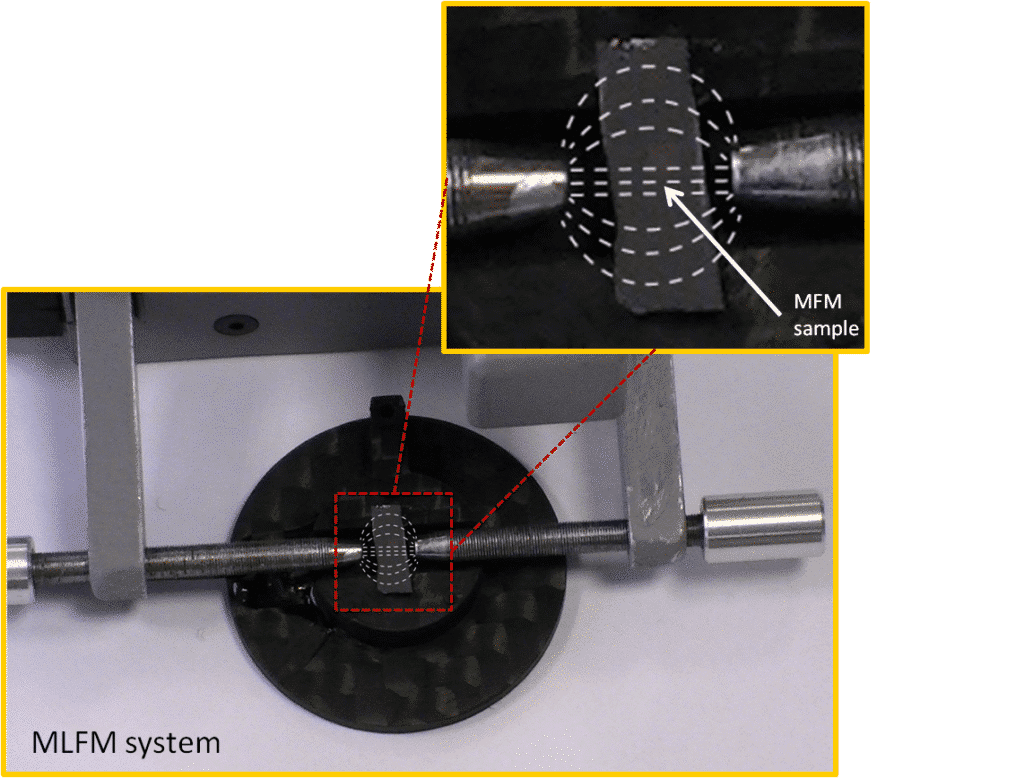

MLFM-module_CSInstruments

MLFM mode probes
