Oscillating/ Resonant

Oscillating/ Resonant Applications

A tip vibrating at its resonant frequency sweeps the surface using piezoelectric motors. Laser detection maintains the amplitude of oscillation constant during the measurement. The movements of the vertical piezoelectric motor are recorded to reconstruct the surface. Mapping of mechanical properties is achieved with the offsets of the phase signal. (phase contrast).

Applications

 Materials science

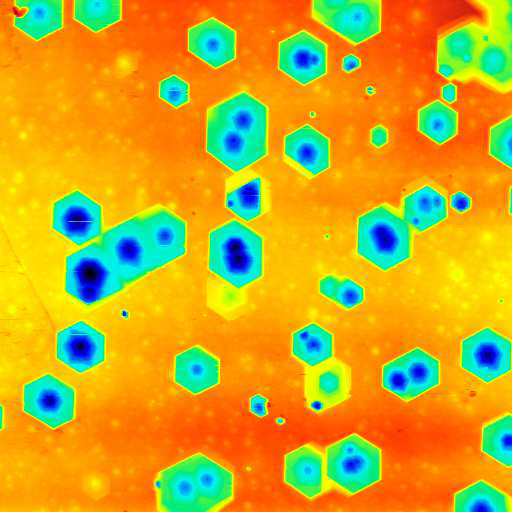

 Semiconductor

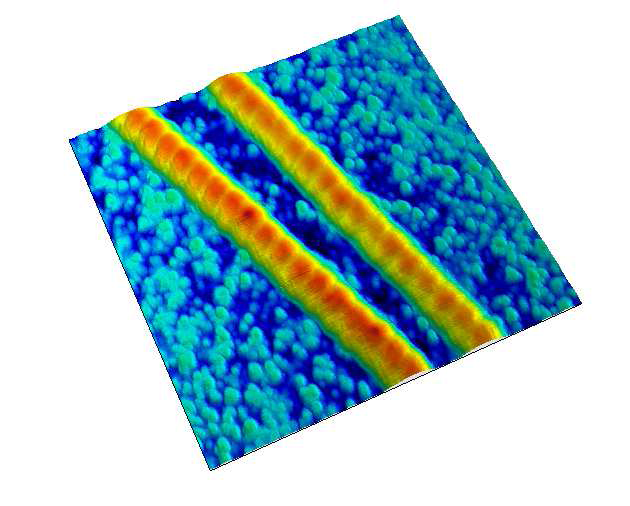

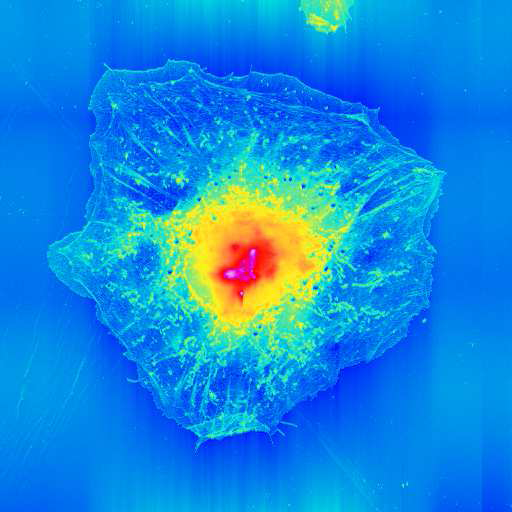

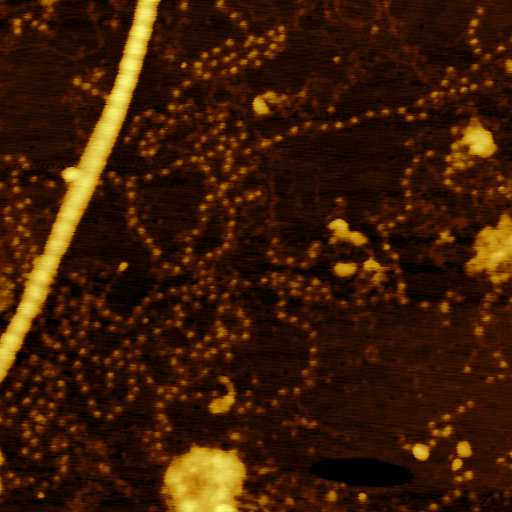

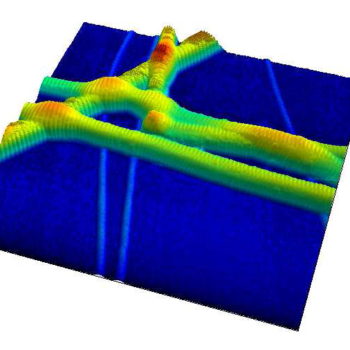

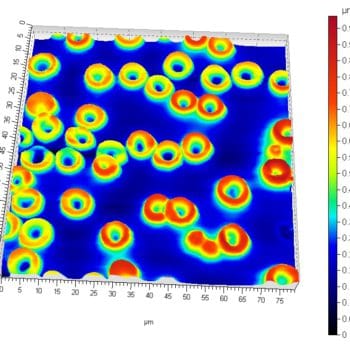

 Life science
 Nanostructure

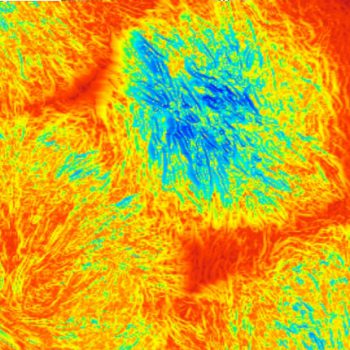

 Polymer

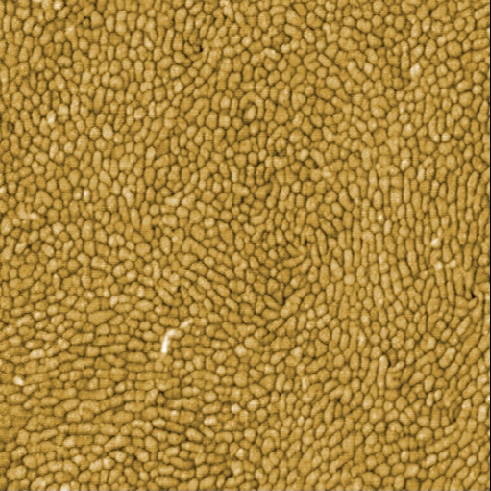

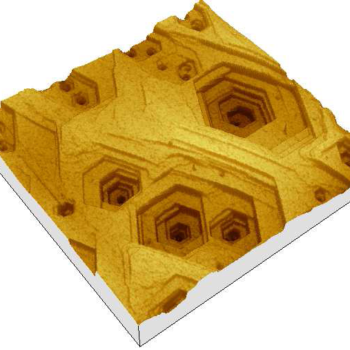

Sapphire AIN-GaN, oscillating mode, 2µm
Sapphire AIN-GaN, oscillating mode, 2µm
