DD-ACTA

710,005000,00

Clear

Description

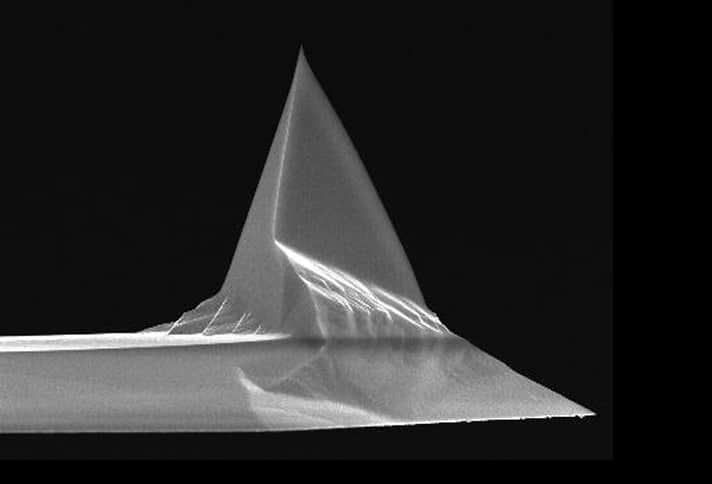

The tip side of these probes is coated with polycrystalline diamond. The diamond lm is in-situ doped with boron to make it highly conducting. 1.6 spring constant is compatible for ResiScope, conductive, PFM modes.

Tip Specifications
MaterialSi
ShapeRectangular
Reflex CoatingAl / 50 nm
Height (μm)14-16
Aspect Ratio1.5-3.0
ROC (nm)100-300
Coating100nm Doped Diamond



Cantilever Specifications
Spring Constant
(N/m)
Frequency
(kHZ)
Length
(μm)
Width
(μm)
Thickness
(μm)
40300125354.5

Additional information

QUANTITIES PRICE

5, 10, 20, 50
