HYDRA-ALL

256,00970,00

4 Triangular Silicon Nitride Cantilevers on one chip with different spring constant that allows different forces on the surface

Clear

Description

The HYDRA-ALL Probe is a 4-in-1 probe chip with four cantilevers of varying spring constants and lengths. The probe is designed to work with soft materials in a variety of applications.

Tip Specifications
MaterialSi
ShapeTetrahedral
Height (μm)4-6
Tip ROC (nm)<10*
CoatingNone
* Probes with larger tip radius are available upon request

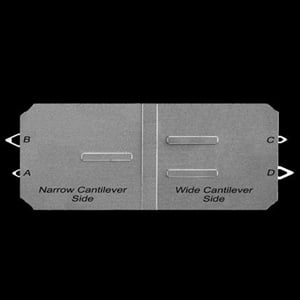

4 Cantilevers on 1 Chip
Lever A: 6V-100NLever B: 6V-200NLever C: 6V-
100W
Lever D: 6V-200W
Spring Constant (N/m)0.2920.0450.4050.081
Frequency (kHz)66176717
Length (μm)100200100200
Width (μm)18222540
Thickness (μm)0.60.60.60.6

Additional information

QUANTITIES PRICE

10, 20, 50
