sMIM Applications

This AFM mode measures the electrical properties of materials at length scales from 10’s of nanometers to microns. sMIM modules produce high quality images of local electrical properties with better than 50 nm resolution.The core of our technical approach is to utilize microwave reflections from a nm scale region of the sample directly under the sMIM probe.

Applications

 •Micro-electronics
 Nano-materials
 Doping profiles
 Biomedical
 Green Energy
 Photonic materials and devices

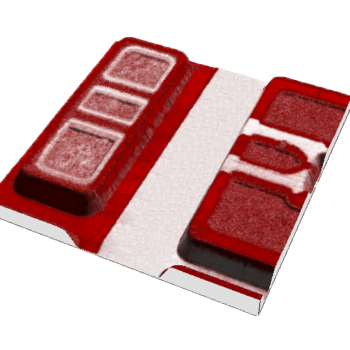

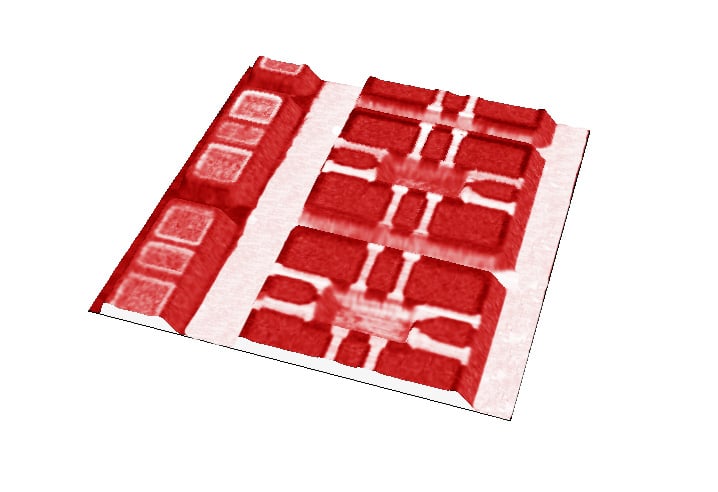

sRAM, topography & dC/dV signals, sMIM mode, 13µm

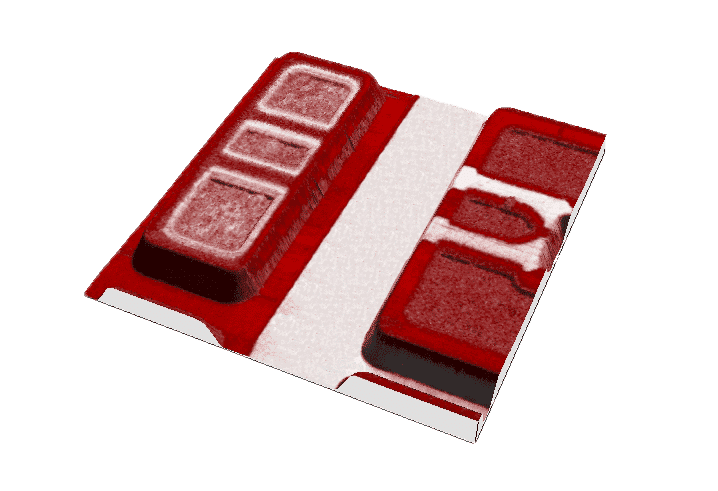

sRAM, topography & dC/dV signals, sMIM mode, 13µm

Related products

sMIM-R

sMIM product,

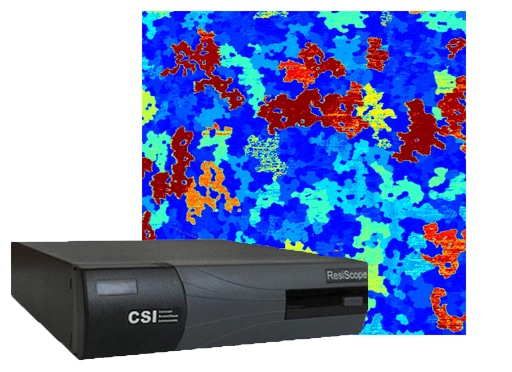

AFM Electrical measurements
