ACL-SS

Super-Sharp silicon probes designed for Non-Contact, Tapping Mode, Intermittent Contact, and/or Close Contact applications. Our Super Sharp probes yield enhanced resolution images.

For more informations, please contact us

Description

ACL probes are silicon probes with high spring constant for hard tapping measurements (high force). These probes have a medium frequency that allows differents capabilities in phase imaging

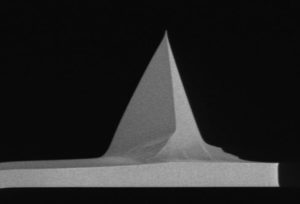

Tip Specifications
MaterialSi
ShapePyramidal
Height (μm)14-16
Tip ROC1 - 2 nm



Cantilever Specifications
Spring Constant (N/m)Frequency (kHZ)Length (μm)Width (μm)Thickness (μm)
58190225407.8

Additional information

QUANTITIES PRICE

10, 20, 50

BACKSIDE COATING

None, Aluminium
